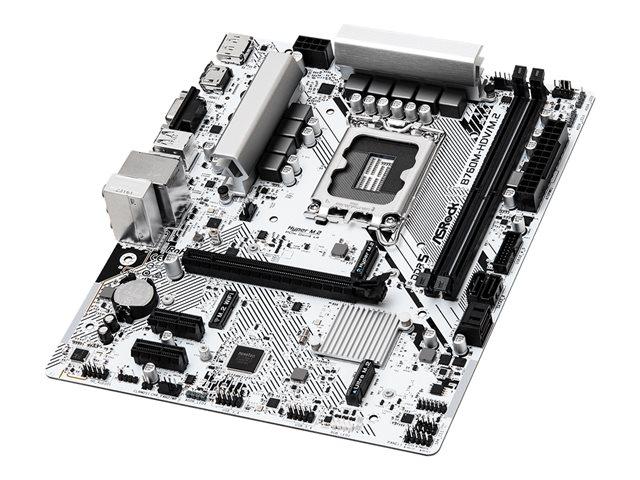

ASROCK B760M-HDV/M.2 mATX LGA1700 2xDDR5 1xPCIe 4.0 x16 LAN 1Gb/s

ASROCK B760M-HDV/M.2 mATX LGA1700 2xDDR5 1xPCIe 4.0 x16 LAN 1Gb/s

Manufacturer	ASROCK
Manufacturer Part No	B760M-HDV/M.2

Marketing Description
The ASRock B760M-HDV/M.2 motherboard is designed to cater to the needs of modern PC builders and gamers, offering a blend of performance, connectivity, and durability. With support for Intel Core processors, users can expect seamless computing experiences, whether for work or play. The motherboard's high-speed DDR5 memory support, coupled with advanced storage options including Hyper M.2 and Ultra M.2 sockets, ensures rapid data access and transfer speeds, enhancing overall system responsiveness. For connectivity, the motherboard boasts a comprehensive array of ports including VGA, HDMI, DisplayPort, and USB-C 3.2 Gen 1, facilitating the connection of multiple peripherals and displays. Networking is handled by a 2.5 Gigabit Ethernet controller, providing users with fast and reliable Internet access. Additionally, the motherboard features a robust 7+1+1 Phase Power Design and ESD Protection, ensuring stable power delivery and protecting the system from electrical surges. With these features, the ASRock B760M-HDV/M.2 motherboard stands out as a solid foundation for building a high-performance PC.
Product Features
Enhanced connectivity With a variety of interfaces including VGA, HDMI, DisplayPort, USB-C 3.2 Gen 1, and USB 3.2 Gen 1, this motherboard offers versatile connectivity options for a wide range of peripherals and displays. Robust storage solutions Equipped with multiple storage interfaces such as Hyper M.2, Ultra M.2, and Serial ATA-600 (RAID), the motherboard provides flexible storage solutions, supporting high-speed data transfer and RAID configurations for enhanced data integrity and performance. High-speed memory support Supporting DDR5 SDRAM at speeds up to 7200 MHz (O.C.), the motherboard enables faster data processing and improved system performance, making it suitable for demanding applications and gaming. Advanced networking Featuring a 2.5 Gigabit Ethernet controller, the motherboard offers high-speed network connectivity, ensuring smooth online gaming, streaming, and fast data transfers. Comprehensive cooling and protection With ESD Protection and a 7+1+1 Phase Power Design, the motherboard ensures stable power delivery and protects against electrical surges, contributing to the longevity and reliability of the system.
General
Product Type	Motherboard - micro ATX
Chipset Type	Intel B760
Processor Socket	LGA1700 Socket
Max Processors Qty	1
Compatible Processors	(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size	96 GB
Technology	DDR5
Bus Clock	7200 MHz (O.C.)
Supported RAM Integrity Check	Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered	Unbuffered
Features	Dual channel memory architecture, supported ECC modules operate in non-ECC mode, Intel Extreme Memory Profiles (XMP) 3.0
Audio
Type	HD Audio (8-channel)
Audio Codec	Realtek ALC897
Compliant Standards	High Definition Audio
LAN
Network Controller	Realtek RTL8125BG
Network Interfaces	2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots	1 x CPU 2 x DIMM 288-pin 1 x PCIe 4.0 x16 2 x PCIe 3.0 x1 1 x M.2 socket (2230 M.2 Key E slot) 1 x M.2 socket (2260/2280 M.2 Key M slot) 1 x M.2 socket (2280 M.2 Key M slot)
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 1 x Hyper M.2 PCIe 3.0 -connectors: 1 x Ultra M.2
Interfaces	1 x VGA 1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen 1 3 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack
Internal Interfaces	2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x SPI - header 1 x speaker - header 1 x audio - header
Power Connectors	24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type	AMI
BIOS Features	UEFI BIOS
Hardware Features	ASRock Instant Flash, ESD Protection, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, ASRock EZ Mode, ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology, Intel Turbo Boost Max Technology 3.0, Intel Hybrid Technology, ASRock Auto Driver Installer, 7+1+1 Phase Power Design, Intel Adaptive Boost Technology (ABT), Intel Thermal Velocity Boost (TVB), ASRock Polychrome RGB
Miscellaneous
Included Accessories	3 x M.2 screws, IO shield
Cables Included	2 x Serial ATA cable
Software Included	ASRock A-Tuning, ASRock Polychrome SYNC, ASRock Dragon 2.5G LAN Software
Compliant Standards	FCC, RoHS, EuP Ready, ErP Ready, HDCP 2.3, UKCA
Width	24.4 cm
Depth	20.1 cm

Technical data provided by third party. We assume no liability for errors within these data.
