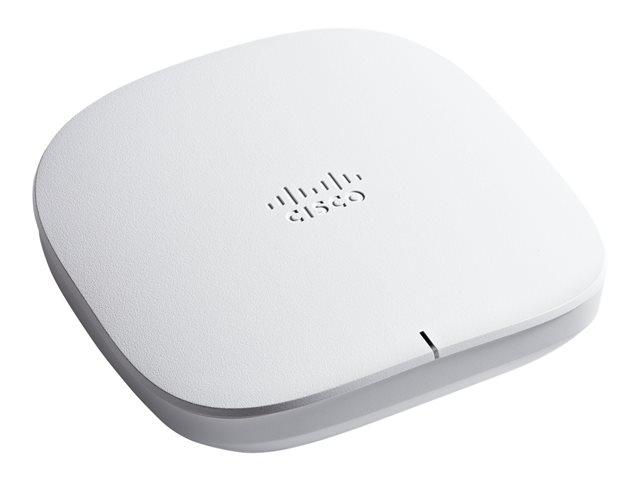

CISCO Business 150AX Access Point

CISCO Business 150AX Access Point

Manufacturer	CISCO
Manufacturer Part No	CBW150AX-E-EU

Marketing Description
The Cisco Business 150AX Access Point delivers increased speed and capacity with Wi-Fi 6 in a compact form factor. Ideal for indoor Wi-Fi coverage, the Cisco Business 150AX delivers a highly secure and reliable wireless connection for small business workplaces. Compatible with Cisco Business 151AXM Mesh Extenders to rapidly expand your Wi-Fi network.
Product Features
PERFORMANCE Enterprise-grade Wi-Fi 6 2x2 performance delivering highly secure and reliable wireless connectivity for small businesses DEPLOYMENT Flexible deployment wall or celling mount (Power over Ethernet injector and mounting kit included) FLEXIBILITY Mix and match with Cisco Business Wi-Fi 6 access points and mesh extenders to increase your Wi-Fi coverage SET UP IN MINUTES Simplified management and monitor your network from Cisco Business Mobile app or web browser ADVANCED SECURITY Enterprise-class security prevent malware, phishing, and other threats from compromising your network via Cisco Umbrella integration
General
Device Type	Radio access point
Width	15.04 cm
Depth	15.04 cm
Height	3.99 cm
Weight	330 g
Localisation	Europe
Processor / Memory / Storage
Processors Installed	1 GHz
RAM	1 GB
Flash Memory	512 MB
Networking
Form Factor	Wall / ceiling mountable
Connectivity Technology	Wireless
Data Transfer Rate	1.488 Gbps
Data Link Protocol	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, 802.11ax
Spread Spectrum Method	OFDMA
Remote Management Protocol	HTTP, RADIUS
Frequency Band	2.4 GHz, 5 GHz
Performance	Maximum data rate (5 GHz): 1.2 Gbps
Capacity	VLANs supported: 16 Wireless clients per Wi-Fi radio: 200 Wireless clients: 400
Status Indicators	Status
Features	VLAN support, manageable, DFS support, wall mountable, Mesh networking, Wi-Fi Multimedia (WMM) support, Maximum Ratio Combining (MRC), 802.1x authentication, cyclic shift diversity (CSD), beamforming technology, Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), 2x2 MU-MIMO technology, Target Wait Time (TWT), BSS Coloring
Encryption Algorithm	AES, TLS, PEAP, TTLS, WPA, WPA2, WPA2-Enterprise, WPA3, PEAPv1
Authentication Method	RADIUS, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM, EAP-TLS
Compliant Standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1, IEEE 802.11ax
Aerial
Antenna	Internal
Antenna Qty	2
Directivity	Omni-directional
Expansion / Connectivity
Interfaces	1 x 1000Base-T (PoE) - RJ-45
Miscellaneous
Included Accessories	Ceiling mounting kit
Compliant Standards	ICES-003, FCC Part 15 B, FCC Part 15.247, RSS-102, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, FCC Part 15.407, ARIB STD-T71, EN 50385, FCC OET Bulletin 65c, RSS-247, EN 62368-1, IEC 62368-1, EN 55032, EN 55035, EMI Class B, EN 300328, EN 301893, CAN/CSA C22.2 No. 60950-1, UL/CUL 62368-1, ARIB STD-66, EN 301489-1, EN 301489-17
Power
Power Over Ethernet (PoE) Supported	PoE
Power Consumption Operational	9.2 Watt
Manufacturer Warranty
Service & Support	Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	0 - 95% (non-condensing)

Technical data provided by third party. We assume no liability for errors within these data.
