Начало Мрежово оборудване Суичове - с контрол CISCO CISCO Business Switching CBS220 Smart 24-port Gigabit Full PoE 382W 4x1G SFP uplink

CISCO Business Switching CBS220 Smart 24-port Gigabit Full PoE 382W 4x1G SFP uplink

Продуктов код: 36896

Този продукт е неналичен.

Продуктът е временно изчерпан. Моля, оставете имейл или отправете своето запитване на support@hits.bg, за да Ви уведомим при нова наличност или предложим заместител.

Характеристика	Стойност
Арт. номера	CBS220-24FP-4G-EU


Manufacturer	CISCO
Manufacturer Part No	CBS220-24FP-4G-EU

Marketing Description

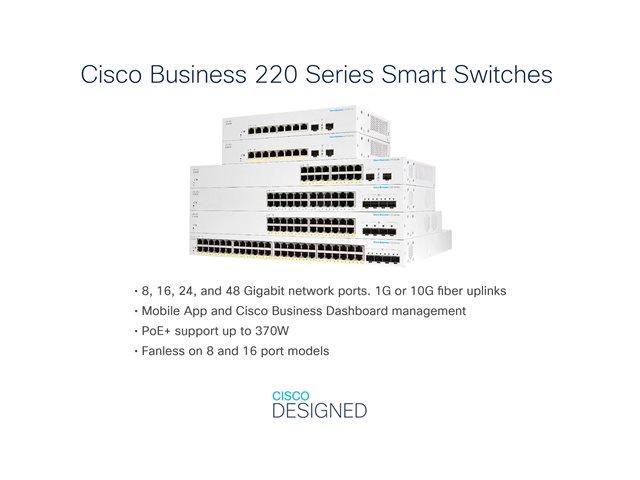

The Cisco Business CBS220-24FP-4G switch is simple and affordable smart switch for business-class network. CBS220 series bridge the gap between the affordability of an unmanaged device and the ease-of-use of smart switches. With their intuitive dashboard, mobile app support, and multiple Power over Ethernet (PoE) options, these switches deliver a solid business network.
Product Features
SWITCH PORTS 24-Port 10/100/1000 + 4 x 1G SFP POWER-OVER-ETHERNET 24 PoE ports with 382W total power budget, PoE, PoE+ SIMPLE Intuitive on-box UI, mobile app and Cisco Business Dashboard simplifies network operations and automates lifecycle management SECURITY Integrated with IEEE 802.1X to control access to your network, Denial-of- Service (DoS) attack prevention increases network uptime during an attack, while Access Control Lists (ACLs) protect the network from unauthorized users INNOVATIVE DESIGN Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
General
Device Type	Switch - 28 ports - smart
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
Power Over Ethernet (PoE)	PoE+
PoE Budget	382 W
Performance	Forwarding performance (64-byte packet size): 41.66 Mpps Switching capacity: 56 Gbps
Capacity	MSTP instances: 16 VLANs supported: 256 ACL rules: 512 Buffer capacity (MB): 4.1
MAC Address Table Size	8192 entries
Jumbo Frame Support	9216 bytes
Routing Protocol	IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol	SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Encryption Algorithm	SSL
Authentication Method	Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features	BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, ACL support, QoS, Cable Diagnostics Function, LACP support, LLDP support, Port Security, DHCP client, Energy Efficient Ethernet, MIB, dual firmware images, NDP, GVRP, 802.1x authentication, ToS, DSCP support, 2 fans, VLAN management, LLDP-MED, Guest VLAN, UDP, STP loop guard, WRR, HOL Blocking Prevention, loopback detection, Telnet server, Unknown Storm Control, BPDU Guard, CDP, DAD, TCP support, auto voice VLAN, Auto MDIX
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
RAM	256 MB
Flash Memory	64 MB
Status Indicators	System, link/activity/speed
Expansion / Connectivity
Interfaces	24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W 4 x 1000Base-X SFP uplink
Power
Power Device	Internal power supply
Voltage Required	AC 100-240 V (50/60 Hz)
Power Consumption Operational	459 Watt
Miscellaneous
Rack Mounting Kit	Included
MTBF	588,411 hours
Compliant Standards	C-Tick, UL 60950, CSA 22.2, FCC CFR47 Part 15 A
Localisation	United Arab Emirates, Indonesia, Israel, South Africa, Vietnam, Ukraine, Egypt, Thailand, Philippines, Korea, Russia, Switzerland, Turkey, European Economic Area
Dimensions & Weight
Width	44 cm
Depth	25.7 cm
Height	4.4 cm
Weight	4.1 kg
Manufacturer Warranty
Service & Support	Limited warranty - replacement - 3 years - response time: next business day
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	50 °C
Humidity Range Operating	10 - 90% (non-condensing)
Min Storage Temperature	-20 °C
Max Storage Temperature	70 °C
Humidity Range Storage	10 - 90% (non-condensing)

Technical data provided by third party. We assume no liability for errors within these data.
