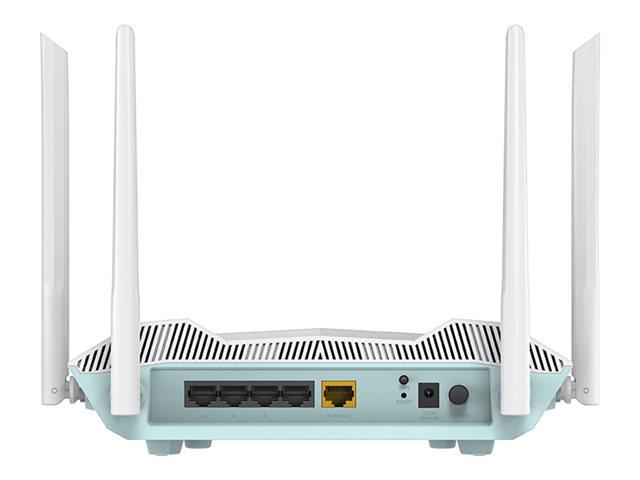

D-LINK EAGLE PRO AI AX3200 Smart Router

D-LINK EAGLE PRO AI AX3200 Smart Router

Manufacturer	D-LINK
Manufacturer Part No	R32/E

Marketing Description
R32 served as the ideal solution with better signal and connection throughout your home to secure compatibility among diverse brand of smart home products.
Product Features
Boosted speed for multi-device households In answer to growing demands of more devices at home, R32's 4x4 MU-MIMO technology and 8 streams could communicate with multiple users at the same time in high-density scenarios. With more than enough bandwidth for connections, get ready to enjoy a much reliable Wi-Fi experience without lag. Broader coverage and reliable Wi-Fi With more and more connected personal and IoT devices, R32's design meets their expectations by supporting multiple devices. Coupled with 4 high-power RF FEMs, R32 transmit farther with balanced network demand. EAGLE PRO AI technology The AI technology identifies your Wi-Fi needs and fixes your Wi-Fi issues. With EAGLE PRO AI, you can easily handle a mesh system, high network traffic, Wi-Fi interference, and websites filter with just a single click.
General
Device Type	Wireless router - 4-port switch (integrated)
Enclosure Type	Desktop
Connectivity Technology	Wireless, wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
Frequency Band	2.4 GHz / 5 GHz
Data Transfer Rate	3.2 Gbps
Performance	Maximum data rate (2.4 GHz): 800 Mbps Maximum data rate (5 GHz): 2402 Mbps
Capacity	Simultaneous streams: 4 Concurrent sessions: 30000 Connected devices: 128
Network / Transport Protocol	PPTP, L2TP, PPPoE, DHCP, IPv4, IPv6, DS-Lite
Routing Protocol	Static IP routing
Remote Management Protocol	HTTP
Encryption Algorithm	WPA, WPA2, WPA3, WPA3-Personal, WPA2-Personal
Wi-Fi Rating	AX3200
Features	SPI, MAC address filtering, DFS support, IP address filtering, QoS, port forwarding, anti-spoofing protection, SmartBeam technology, DoS, SmartConnect Technology, scheduler, dual band, guest access, seamless roaming, 4x4 MU-MIMO technology, DMZ support, VLAN Tagging, priority mode, WPS button, test Internet speed, Voice Control, Smart Mesh technology, BSS Coloring, AI Wi-Fi Optimizer, AI Traffic Optimizer, AI Parental Control, TWT, AI Assistant, EAGLE PRO AI
Compliant Standards	IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.11k, IEEE 802.11ac, IEEE 802.11v, IEEE 802.11ax, Wi-Fi CERTIFIED 6, IC, FCC
Status Indicators	Power, Internet, 5 GHz, 2.4 GHz
Line Properties
Line Coding Format	1024 QAM, OFDMA
Internet of Things (IoT)
Internet of Things (IoT) Compatible	Yes
Intelligent Assistant	Google Assistant, Alexa
Voice Controlled	Indirect
Expansion / Connectivity
Interfaces	WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Aerial
Aerial	External
Antenna Qty	4
Directivity	Omni-directional
Power
Power Device	External power adapter
Voltage Required	AC 100/240 V (50/60 Hz)
Power Consumption Operational	15.18 Watt
Miscellaneous
Cables Included	1 x network cable - 1 m
Localisation	Europe
Dimensions & Weight
Width	22.83 cm
Depth	15.9 cm
Height	6.19 cm
Weight	446 g
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	10 - 90% (non-condensing)

Technical data provided by third party. We assume no liability for errors within these data.
