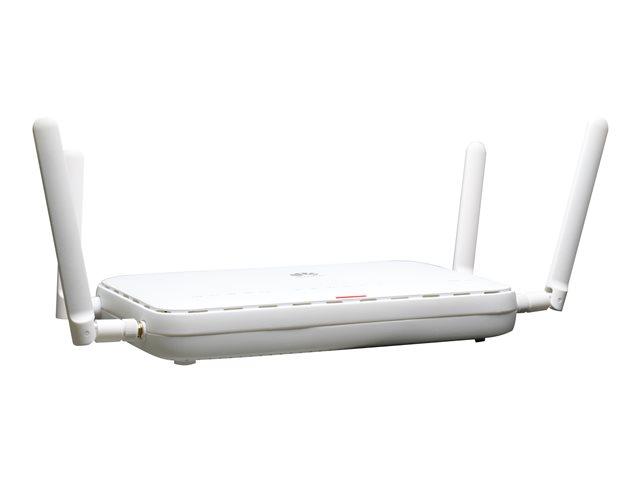

HUAWEI 50010564-001 AR617VW-LTE4EA 1xGE COMBO WAN 4xGE LAN 1xVDSL2 2xFXS 1xUSB 2.0 1xLTE Wi-Fi 2.4G+5G

HUAWEI 50010564-001 AR617VW-LTE4EA 1xGE COMBO WAN 4xGE LAN 1xVDSL2 2xFXS 1xUSB 2.0 1xLTE Wi-Fi 2.4G+5G

Manufacturer	HUAWEI TECHNOLOGIES
Manufacturer Part No	50010564-001

Marketing Description
Huawei's next-generation NetEngine AR600 series enterprise routers use multi-core processors and a non-blocking switching structure, helping to deliver four times the industry average performance. The NetEngine AR600 also integrates functions such as SD-WAN, cloud management, routing, switching, VPN, and security, ensuring diversified and cloud-based services are fully supported. Huawei NetEngine AR600 series enterprise routers can be deployed at branches of SMBs and small-sized enterprises as required to provide enterprise network egress capabilities.
General
Device Type	Wireless router - 4-port switch (integrated)
Enclosure Type	Desktop, wall-mountable - 1U
Connectivity Technology	Wireless, wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Frequency Band	2.4 GHz / 5 GHz
Data Transfer Rate	866 Mbps
Features	Reset button, fanless, 2x2 MIMO technology, battery-backed RTC, dual core CPU
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Processor	1.1 GHz
RAM	1 GB
Flash Memory	1 GB
Status Indicators	Power, system, signal strength, WAN, LAN, USB, Internet, VDSL, 5 GHz, 2.4 GHz, FXS line, controller, WWAN
Communications
Type	DSL modem
Digital Signaling Protocol	ADSL, VDSL, ADSL2, ADSL2+, VDSL2
Mobile Communication Protocol	GSM, GPRS, EDGE, WCDMA, HSPA+, DC-HSPA+, FDD LTE, TDD LTE
Generation	4G
Cellular Band	LTE B3, LTE B7, LTE B20, LTE B1, LTE B28, LTE B8, LTE B40, LTE B41, LTE B38, WCDMA B1, WCDMA B8
Protocols & Specifications	ITU G.992.5, ITU G.993.2, ITU G.992.3, ITU G.992.1
IP Telephony
VoIP Functionality	VoIP phone adapter
Telephony Interfaces	2 phone (FXS)
IP Telephony Features	Dual-Tone Multi-Frequency (DTMF) dialing
Expansion / Connectivity
Interfaces	LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 USB 2.0: 1 x 4 pin USB Type A Console: 1 x RS-232 WAN: 1 x VDSL2 / ADSL2+ - RJ-11 Phone line: 2 x FXS - RJ-11 WAN: 1 x 10Base-T/100Base-TX/1000Base-T - LC/PC Antenna: 2 x RP-SMA - Wi-Fi LAN / management: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 Antenna: 2 x SMA - LTE WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Expansion Slots	2 (total) / 2 (free) x Micro-SIM
Aerial
Aerial	External detachable
Antenna Qty	4
Power
Power Device	External power adapter - 24 Watt
Voltage Required	AC 100-240 V (50/60 Hz)
Miscellaneous
MTBF	51,63 years
Dimensions & Weight
Width	24 cm
Depth	16.15 cm
Height	3.8 cm
Weight	690 g
Dimensions & Weight (Shipping)
Shipping Width	37 cm
Shipping Depth	29.7 cm
Shipping Height	9 cm
Shipping Weight	1.31 kg
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	5 - 95% (non-condensing)

Technical data provided by third party. We assume no liability for errors within these data.
