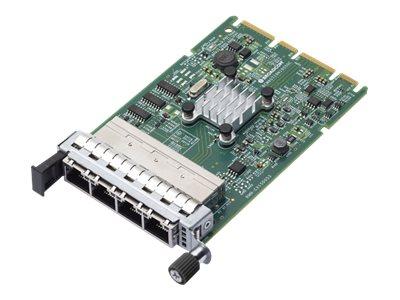

LENOVO ThinkSystem Broadcom 5719 1GbE RJ45 4-port OCP Ethernet Adapter

Продуктов код: 35920

Запитване за LENOVO ThinkSystem Broadcom 5719 1GbE RJ45 4-port OCP Ethernet Adapter

Лизингов калкулатор

Характеристика	Стойност
Арт. номера	4XC7A08235


Manufacturer	LENOVO
Manufacturer Part No	4XC7A08235

Marketing Description
The NetXtreme Quad Port Ethernet Adapter is an ideal way to implement a virtualization solution using your existing Gigabit Ethernet network. With four copper-based Gigabit ports on a single PCI Express 2.0 x4 interface, the adapter provides the density and capacity you need to support large numbers of virtualized systems on one server.
Product Features
Enhanced connectivity With four RJ-45 connectors, the Lenovo ThinkSystem Broadcom 5719 network adapter offers versatile 1000Base-T connectivity for robust data transfer and efficient networking. Its support for Ethernet, Fast Ethernet, and Gigabit Ethernet ensures compatibility with a wide range of network infrastructures. Reliable performance Designed to meet a variety of compliance standards including AS/NZS CISPR 22, EN 60950, and RoHS, this network adapter ensures reliable performance in diverse operating environments. The inclusion of Jumbo Frames support up to 9600 bytes and Wake On LAN (WOL) feature enhances its efficiency and manageability. Energy-efficient networking Incorporating IEEE 802.3az technology, the Broadcom 5719 network adapter is engineered for energy-efficient Ethernet operation, reducing power consumption during periods of low data activity. This makes it an ideal solution for enterprises looking to minimize their energy footprint while maintaining high network performance.
General
Device Type	Network adapter
Interface (Bus) Type	Open Compute Project mezzanine (OCP)
Networking
Ports	Gigabit Ethernet x 4
Connectivity Technology	Wired
Cabling Type	Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Data Transfer Rate	1 Gbps
Network / Transport Protocol	TCP/IP
Features	WOL, Jumbo Frames support (up to 9600 bytes)
Compliant Standards	IEEE 802.3z, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1ad, IEEE 802.3az
Processor / Memory
Processor	1 x Broadcom BCM5719
Expansion / Connectivity
Interfaces	4 x 1000Base-T - RJ-45
Miscellaneous
Compliant Standards	VCCI, BSMI, EN 60950, EN 61000-3-2, EN55022, RRL, UL 1950, EN 61000-3-3, EN55024, RoHS, AS/NZS CISPR 22, ICES-003 issue 4, FCC CFR47 Part 15 A, IEC 950, CSA C22.2 950-95, IEEE 802.1Q
Dimensions & Weight
Depth	11.5 cm
Height	7.6 cm
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature	10 °C
Max Operating Temperature	35 °C
Humidity Range Operating	20 - 80% (non-condensing)
Compatibility Information
Designed For	Lenovo ThinkAgile VX2330 Appliance 7Z62 Lenovo ThinkAgile VX3330 Appliance 7Z62 Lenovo ThinkAgile VX3331 7Z62 Lenovo ThinkAgile VX3530-G Appliance 7Z63 Lenovo ThinkAgile VX3575-G Integrated System 7D43 Lenovo ThinkAgile VX5530 Appliance 7Z63 Lenovo ThinkAgile VX5575 Integrated System 7D43 Lenovo ThinkAgile VX7330-N Appliance 7Z62 Lenovo ThinkAgile VX7530 Appliance 7Z63 Lenovo ThinkAgile VX7531 Certified Node 7Z63 Lenovo ThinkAgile VX7575 Integrated System 7D43 Lenovo ThinkAgile VX7576 Certified Node 7D43 Lenovo ThinkSystem SR630 V2 7Z71 Lenovo ThinkSystem SR635 7Y99 Lenovo ThinkSystem SR645 7D2X Lenovo ThinkSystem SR650 V2 7D15, 7Z73 Lenovo ThinkSystem SR655 7Z01 Lenovo ThinkSystem SR665 7D2V, 7D2W Lenovo ThinkSystem SR670 V2 7Z23 Lenovo ThinkSystem SR850 V2 7D32

Technical data provided by third party. We assume no liability for errors within these data.
