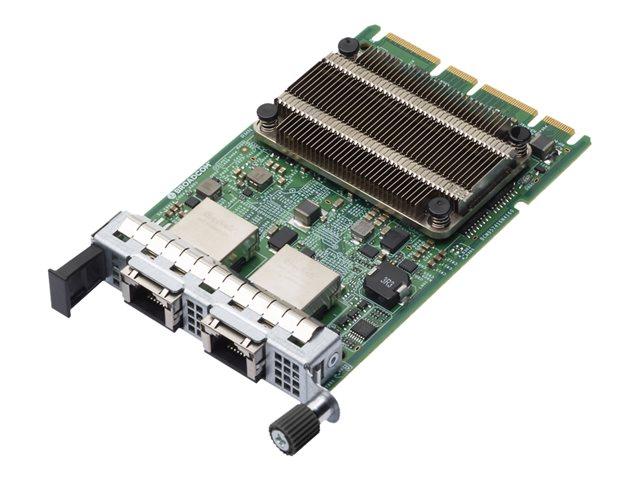

LENOVO ThinkSystem Broadcom 57416 10GBASE-T 2-port OCP Ethernet Adapter

Продуктов код: 35917

Запитване за LENOVO ThinkSystem Broadcom 57416 10GBASE-T 2-port OCP Ethernet Adapter

Лизингов калкулатор

Характеристика	Стойност
Арт. номера	4XC7A08236


Manufacturer	LENOVO
Manufacturer Part No	4XC7A08236

Marketing Description
10GBASE-T is a low-cost way to enter the 10 Gb Ethernet space. By using standard UTP twisted pair cabling, you eliminate the need for transceivers or fiber optic cabling. The OCP adapters support the Network Controller Sideband Interface (NC-SI) for communication with the server's onboard service processor. This support enables the sharing the network interface with the service processor and the operating system, thereby eliminating the need for a separate management network.
Product Features
Enhanced connectivity The Lenovo ThinkSystem Broadcom 57416 network adapter offers dual RJ-45 connectors, providing robust connectivity options for both Gigabit and 10 Gigabit Ethernet networks. This versatility ensures seamless integration into existing network infrastructures, enhancing data transfer rates and network efficiency. Advanced networking features With support for a wide range of features such as Data Center Bridging Exchange (DCBX), RDMA over Converged Ethernet (RoCE), and Virtual Extensible LAN (VXLAN), this network adapter is designed to meet the demands of modern data centers. Features like Large Send Offload (LSO) and Receive Side Scaling (RSS) optimize data flow, reducing CPU load and improving overall system performance. Comprehensive standards compliance The Broadcom 57416 adheres to numerous industry standards, including IEEE 802.3an for 10 Gigabit Ethernet and IEEE 802.1Qaz. This compliance ensures a high level of reliability and interoperability with a wide range of network equipment and systems, making it a versatile choice for diverse IT environments.
General
Device Type	Network adapter
Form Factor	Plug-in card
Interface (Bus) Type	Open Compute Project mezzanine (OCP) 3.0
Networking
Ports	Gigabit Ethernet / 10Gb Ethernet x 2
Connectivity Technology	Wired
Cabling Type	Ethernet 1000Base-T, Ethernet 10GBase-T
Data Link Protocol	Gigabit Ethernet, 10 Gigabit Ethernet
Data Transfer Rate	10 Gbps
Capacity	Jumbo frame size: 9000
Features	IPv6 support, DCBX support, IPv4 support, LSO, LRO, RSS, SR-IOV, TSO, checksum offload support, MSI-X, GRE, TSS, iSCSI boot, RoCE, NC-SI, VXLAN, NVGRE, Mware NetQueue and Microsoft VMQ, DPDK, TruFlow, Interrupt coalescing, vSwitch Acceleration, tunnel-aware stateless offloads
Compliant Standards	IEEE 802.3ab, IEEE 802.3an, IEEE 802.1Qbb, IEEE 802.1Qaz
Processor / Memory
Processor	1 x Broadcom BCM57416
Expansion / Connectivity
Interfaces	2 x network - RJ-45
Miscellaneous
Compliant Standards	UL, BSMI CNS 13438 Class A, RRL, CSA 22.2 No. 950, MIC, ICES-003 Class A, UL 60950-1, EN 60950-1, cTUVus, VCCI V-3, KN24, KN22 Class A, CNS 14336, EN 55024:2010, EN 55022:2010, EN 55024 Class A, FCC CFR47 Part 15 A
Dimensions & Weight
Width	7.6 cm
Depth	11.5 cm
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Compatibility Information
Designed For	Lenovo ThinkAgile VX2330 Appliance 7Z62 Lenovo ThinkAgile VX3330 Appliance 7Z62 Lenovo ThinkAgile VX3331 7Z62 Lenovo ThinkAgile VX3530-G Appliance 7Z63 Lenovo ThinkAgile VX3575-G Integrated System 7D43 Lenovo ThinkAgile VX5530 Appliance 7Z63 Lenovo ThinkAgile VX5575 Integrated System 7D43 Lenovo ThinkAgile VX7330-N Appliance 7Z62 Lenovo ThinkAgile VX7530 Appliance 7Z63 Lenovo ThinkAgile VX7531 Certified Node 7Z63 Lenovo ThinkAgile VX7575 Integrated System 7D43 Lenovo ThinkAgile VX7576 Certified Node 7D43 Lenovo ThinkSystem SR630 V2 7Z71 Lenovo ThinkSystem SR635 7Y98, 7Y99 Lenovo ThinkSystem SR645 7D2X Lenovo ThinkSystem SR650 V2 7D15, 7Z73 Lenovo ThinkSystem SR655 7Y00, 7Z01 Lenovo ThinkSystem SR665 7D2V, 7D2W Lenovo ThinkSystem SR850 V2 7D32

Technical data provided by third party. We assume no liability for errors within these data.
