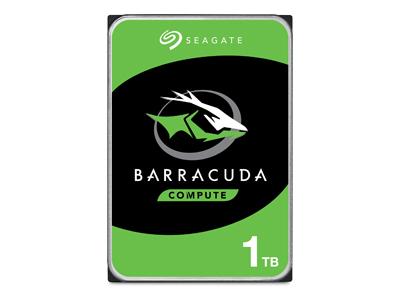

SEAGATE Desktop Barracuda 7200 1TB HDD 7200rpm SATA 3.5inch
SEAGATE Desktop Barracuda 7200 1TB HDD 7200rpm SATA 3.5inch
Този продукт е неналичен.
Продуктът е временно изчерпан. Моля, оставете имейл или отправете своето запитване на support@hits.bg, за да Ви уведомим при нова наличност или предложим заместител.
| Характеристика | Стойност |
|---|---|
| Арт. номера |
ST1000DM014
|
SEAGATE Desktop Barracuda 7200 1TB HDD 7200rpm SATA 3.5inch
| Manufacturer | SEAGATE | |
| Manufacturer Part No | ST1000DM014 | |
| Marketing Description | |
| The Serial ATA (SATA) interface provides several advantages over the traditional (parallel) ATA interface. The primary advantages include: easy installation and configuration with true Plug-and-Play connectivity. It is not necessary to set any jumpers or other configuration options. Thinner and more flexible cabling for improved enclosure airflow and ease of installation. Scalability to higher performance levels. In addition, SATA makes the transition from parallel ATA easy by providing legacy software support. SATA was designed to allow users to install a SATA host adapter and SATA disk drive in the current system and expect all of the existing applications to work as normal. The SATA interface connects each disk drive in a point-to-point configuration with the SATA host adapter. There is no master/slave relationship with SATA devices like there is with parallel ATA. If two drives are attached on one SATA host adapter, the host operating system views the two devices as if they were both "masters" on two separate ports. This essentially means both drives behave as if they are Device 0 (master) devices. The SATA host adapter and drive share the function of emulating parallel ATA device behavior to provide backward compatibility with existing host systems and software. The Command and Control Block registers, PIO and DMA data transfers, resets, and interrupts are all emulated. |
|
| Product Features | |
|
|
| General | |
| Device Type | Hard drive - internal |
| Capacity | 1 TB |
| Form Factor | 3.5" |
| Interface | SATA 6Gb/s |
| Buffer Size | 256 MB |
| Bytes per Sector | 4096 |
| Features | Native Command Queuing (NCQ), PIO mode 0-4 support, Multi-Word DMA mode 0-2 support, Ultra DMA Mode 0-6 support, Hot-Plug Support, Worldwide Name (WWN), shingled magnetic recording (SMR), S.M.A.R.T health information support |
| Width | 101.6 mm |
| Depth | 146.99 mm |
| Height | 20.2 mm |
| Weight | 490 g |
| Performance | |
| Drive Transfer Rate | 600 MBps (external) |
| Average Latency | 6 ms |
| Spindle Speed | 7200 rpm |
| Reliability | |
| Non-Recoverable Errors | 1 per 10^14 |
| Expansion & Connectivity | |
| Interfaces | 1 x SATA 6 Gb/s - 7 pin Serial ATA |
| Compatible Bay | 3.5" |
| Power | |
| Power Consumption | 3.9 Watt (idle) 5.1 Watt (read/write) 0.3 Watt (standby) 0.3 Watt (sleep) |
| Software & System Requirements | |
| Software Included | Seagate SeaTools |
| Miscellaneous | |
| Compliant Standards | China RoHS, EN 61000-4-2:95, EN 61000-4-3:96, EN 61000-4-4:95, EN 61000-4-5:95, EN 61000-4-6:97, EN 61000-4-11:94, ENV 50204:95, ASTM B845, EU RoHS |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 60 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Shock Tolerance (operating) | 80 g @ 2 ms |
| Shock Tolerance (non-operating) | 350 g @ 2 ms |
| Vibration Tolerance (operating) | 0.25 g @ 350-500 Hz |
| Vibration Tolerance (non-operating) | 3 g @ 350-500 Hz |
| Sound Emission | 28 dB |
Technical data provided by third party. We assume no liability for errors within these data.
