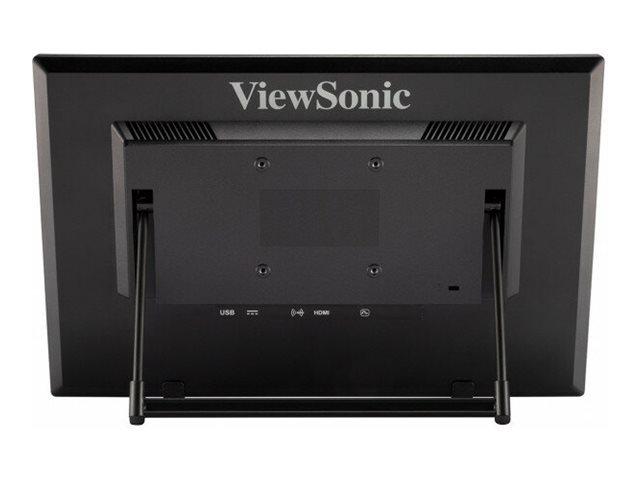

Монитор - VIEWSONIC TD1630-3 16inch 1366x768 10-point Multitouch 190nits VGA HDMI speakers bookstand style

Продуктов код: 22096
Запитване за Монитор - VIEWSONIC TD1630-3 16inch 1366x768 10-point Multitouch 190nits VGA HDMI speakers bookstand style
Лизингов калкулатор
Продуктът не е наличен и цената му може да не е актуална.
Характеристика Стойност
Арт. номера
TD1630-3


VIEWSONIC TD1630-3 16inch 1366x768 10-point Multitouch 190nits VGA HDMI speakers bookstand style


Manufacturer VIEWSONIC
Manufacturer Part No TD1630-3

Marketing Description
The ViewSonic TD1630-3 is a 16" (15.6" viewable) display with 10-point multi-touch functionality. With an advanced ergonomic design, the TD1630-3 can tilt or lay flat to give users maximum comfort. Delivering touchscreen versatility, this display offers fantastic flexibility for retail or business settings, while VGA and HDMI inputs provide ample connectivity. Compatibility with a wide range of operating systems, including Windows 10/11 and Linux versions, along with dual integrated speakers, make this intuitive touchscreen a highly accurate, ultra-responsive touch experience that is ideal for interactivity in a retail or business settings.
Product Features
  • Advanced ergonomic stand design
    A stable, integrated bookstand design makes it easy to adjust the angle of this display for a better user experience. The display can tilt or lay completely flat on a tabletop for a more comfortable work environment.
  • Versatile connectivity
    HDMI and VGA inputs give you the freedom to connect your monitor to a variety of devices.
  • Durable, scratch-resistant screen
    This touch display is equipped with a durable, protective glass faceplate, resulting in increased durability with scratch protection; as well as a consistent, high-quality touch experience in high-traffic areas like public spaces where the touch display can be used as a kiosk.
General
Display Type LED-backlit LCD monitor / TFT active matrix
Energy Class Class B
Energy Consumption per Year 6 kWh
Diagonal Size 16"
Viewable Size 15.6"
Built-in Devices USB 2.0 hub
Panel Type TN
Aspect Ratio 16:9
Native Resolution 1366 x 768 at 60 Hz
Pixel Pitch 0.252 mm
Brightness 190 cd/m²
Contrast Ratio 500:1 / 10000000:1 (dynamic)
Colour Support 262,000 colours
Colour Gamut 45% NTSC
Response Time 12 ms
Vertical Refresh Rate 56 - 75 Hz
Horizontal Refresh Rate 30 - 61 kHz
Horizontal Viewing Angle 90
Vertical Viewing Angle 60
Screen Coating 7H Hard Coating
Backlight Technology WLED
Features Sync on Green, glossy, OSD lock, Flicker Free technology, Transition Minimised Differential Signaling (TMDS) technology, Composite Sync, Bluelight Filter
Dimensions (WxDxH) 37.92 cm x 3.72 cm x 24.71 cm - with stand
Weight 1.32 kg
Audio
Type Speakers - stereo
Output Power / Channel 1 Watt
Input
Type Touch-screen - touchscreen
Movement Detection Technology Projected capacitive
Connectivity
Interfaces VGA (DB-15)
HDMI
Audio line-in (mini-jack)
USB upstream (Type B)
Mechanical
Display Position Adjustments Tilt
Tilt Angle 15/+50
VESA Mounting Interface 75 x 75 mm
Miscellaneous
Cables Included 1 x audio cable - 1.8 m
1 x VGA cable - 1.5 m
1 x USB cable - 2 m
Backlight Life 15,000 hours
Compliant Standards RCM, BIS, GEMS
Power
Input Voltage AC 120/230 V (50/60 Hz)
Power Consumption (Typical) 5.5 Watt
Software / System Requirements
OS Required Linux Kernel 3.x, Microsoft Windows 7 / 8 / 10 (32/64 bits), Linux Kernel 4.x
Dimensions & Weight
Dimensions & Weight Details With stand - width: 37.92 cm - depth: 3.72 cm - height: 24.71 cm - weight: 1.32 kg
Without stand - width: 37.92 cm - depth: 3.72 cm - height: 24.71 cm - weight: 1.32 kg
Dimensions & Weight (Shipping)
Shipping Width 45.3 cm
Shipping Depth 8.6 cm
Shipping Height 38.9 cm
Shipping Weight 2.5 kg
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 20 - 90% (non-condensing)

Technical data provided by third party. We assume no liability for errors within these data.
