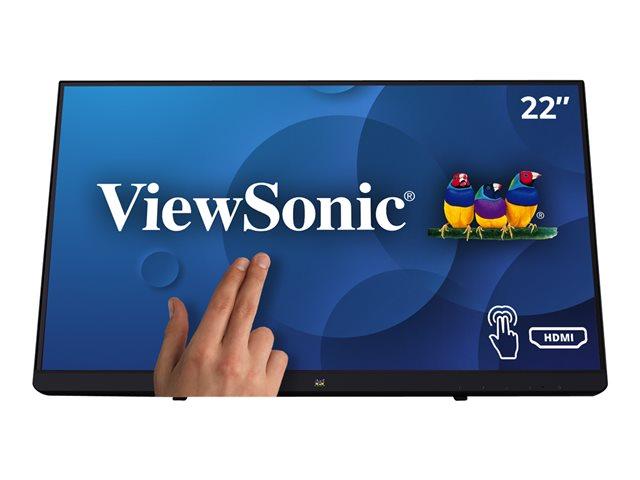

VIEWSONIC TD2230 22inch FHD 1920x1080 IPS 10-Point Multitouch 200nits VGA HDMI DisplayPort 2xUSB speakers bookstand style
VIEWSONIC TD2230 22inch FHD 1920x1080 IPS 10-Point Multitouch 200nits VGA HDMI DisplayPort 2xUSB speakers bookstand style
Този продукт е неналичен.
Продуктът е временно изчерпан. Моля, оставете имейл или отправете своето запитване на support@hits.bg, за да Ви уведомим при нова наличност или предложим заместител.
| Характеристика | Стойност |
|---|---|
| Арт. номера |
TD2230
|
VIEWSONIC TD2230 22inch FHD 1920x1080 IPS 10-Point Multitouch 200nits VGA HDMI DisplayPort 2xUSB speakers bookstand style
| Manufacturer | VIEWSONIC | |
| Manufacturer Part No | TD2230 | |
| Marketing Description | |
| The ViewSonic TD2230 is a 22" (21.5" viewable) Full HD multi-touch display. With a SuperClear IPS-type panel and 10-point projected capacitive touch technology, this display delivers stunning front-of-screen performance with a responsive and accurate touch experience. Featuring a 7H hardness touch screen, edge-to-edge frameless design, and up to 10 simultaneous touch points, this durable display allows users to tap, swipe, pinch, and zoom with ease - perfect for retail, education, or enterprise. An advanced ergonomic bookstand design provides a full range of motion for the desktop, and a VESA-compatible mount allows for flexible mounting options on a monitor stand or wall. Future-proof connectivity options include HDMI, DisplayPort, and USB 3.0, while VGA is also available for legacy systems. ViewSonic's exclusive ViewMode feature provides intuitive presets for optimized screen performance in different applications. In addition, Flicker-Free technology and a Blue Light Filter help to minimize eye strain from extended viewing periods. Industry-leading warranty protection and legendary ViewSonic product quality makes this high performance multi-touch display a great long-term investment for all touch applications. | |
| Product Features | |
|
|
| General | |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Class | Class F |
| Diagonal Size | 22" |
| Viewable Size | 21.5" |
| Built-in Devices | USB 3.0 hub |
| Panel Type | ADS-IPS |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 |
| Brightness | 250 cd/m² |
| Contrast Ratio | 1000:1 / 50000000:1 (dynamic) |
| Response Time | 5 ms (grey-to-grey) |
| Vertical Refresh Rate | 50 - 76 Hz |
| Horizontal Refresh Rate | 15 - 82 kHz |
| Horizontal Viewing Angle | 178 |
| Vertical Viewing Angle | 178 |
| Screen Coating | 7H Hard Coating |
| Backlight Technology | LED backlight |
| Features | Sync on Green, HDCP, SuperClear, frameless, scratch-resistant, Flicker Free technology, Transition Minimised Differential Signaling (TMDS) technology, Blue Light Filter technology, Composite Sync, ViewMode |
| Dimensions (WxDxH) | 49 cm x 4.7 cm x 29.9 cm - with stand |
| Weight | 3.58 kg |
| Audio | |
| Type | Speakers - stereo |
| Output Power / Channel | 3 Watt |
| Input | |
| Type | Touch-screen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Connectivity | |
| Interfaces | VGA DisplayPort HDMI (HDCP) 2 x USB 3.0 downstream (Type A) USB 3.0 upstream (Type B) Headphones (mini-jack) Audio line-in (mini-jack) |
| Mechanical | |
| Display Position Adjustments | Tilt |
| Tilt Angle | -20/+70 |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | |
| Features | Security lock slot (cable lock sold separately) |
| Cables Included | 1 x HDMI cable - 1.5 m 1 x SuperSpeed USB cable - 1.5 m 1 x audio cable - 1.5 m |
| Compliant Standards | FCC Class B certified, UL, DDC-2B, ICES-003, CCC, DDC/CI, cULus, CEL, DisplayPort 1.2, DOE, Mexico CoC |
| Security Slot Type | Kensington security slot |
| Power | |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption SDR (On mode) | 19 kWh/1000h |
| Power Consumption (Typical) | 25 Watt |
| Software / System Requirements | |
| OS Required | Android 4.0 or later, Microsoft Windows 7 / 8 / 10, Linux 2.6.38 or later |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 55 cm |
| Shipping Depth | 11.4 cm |
| Shipping Height | 37.1 cm |
| Shipping Weight | 4.7 kg |
| Sustainability Information | |
| EPEAT Compliant | EPEAT Bronze |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 7.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - pick-up and return - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 90% (non-condensing) |
Technical data provided by third party. We assume no liability for errors within these data.
