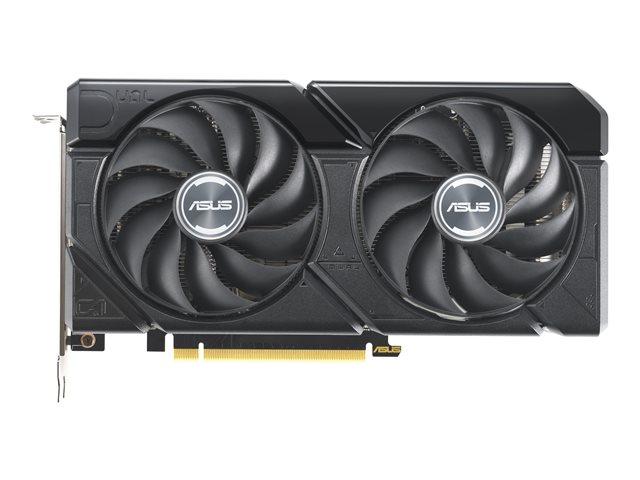

ASUS Dual GeForce RTX 4060 Ti EVO OC Edition 8GB GDDR6 PCIe 4.0 8GB GDDR6 DLSS 3 HDMI 2.1a DisplayPort 1.4a

ASUS Dual GeForce RTX 4060 Ti EVO OC Edition 8GB GDDR6 PCIe 4.0 8GB GDDR6 DLSS 3 HDMI 2.1a DisplayPort 1.4a

Manufacturer	ASUS
Manufacturer Part No	90YV0J49-M0NA00

Product Features
2x fans, 2x fun ASUS Dual GeForce RTX 4060 Ti fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards - including two Axial-tech fans for maximizing airflow to the heatsink - are packed into the 22.7 cm long, 2.5-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build. Axial-tech fan design Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure. 0 dB technology To eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 55 degrees and power consumption is low. Dual ball fan bearings Different bearing types have unique pros and cons. Ball bearings excel at durability and can last up to twice as long as sleeve bearing designs. 2.5-slot design A carefully designed shroud, heatsink, and heatpipe layout allows the two Axial-tech fans to leverage chassis side-panel ventilation and deliver thermal performance that belies the card's size. Auto-Extreme technology Auto-Extreme technology is an automated manufacturing process that sets standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall. Protective backplate The PCB is reinforced by an aluminum backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage. The rear features a wide vent that allows hot air to escape towards chassis exhaust fans instead of being recycled back into the GPU cooler. Stainless steel bracket The mounting bracket of the Dual has been beefed up with 304 stainless steel that's harder and more resistant to corrosion.
General
Device Type	Graphics card
Bus Type	PCI Express 4.0
Graphics Engine	NVIDIA GeForce RTX 4060 Ti
Boost Clock	2565 MHz
Boost Clock (OC)	2595 MHz
CUDA Cores	4352
Max Resolution	7680 x 4320
Max Monitors Supported	4
Interfaces Details	3 x DisplayPort (version 1.4a) HDMI
API Supported	OpenGL 4.6
Features	Dual Fan Design, Dual ball Bearing Fan, AUTO-EXTREME technology, Axial-tech Fan Design, 0dB Technology, NVIDIA Ada Lovelace GPU technology, 4th gen Tensor Cores, 3rd gen Ray Tracing Cores, HDCP
Memory
Size	8 GB
Technology	GDDR6 SDRAM
Memory Speed	18 Gbps
Bus Width	128-bit
System Requirements
Required Power Supply	650 W
Additional Requirements	2 adjacent PCI slots, 8 pin PCI Express power connector
Miscellaneous
Included Accessories	Thank you card
Software Included	ASUS GPU Tweak III
Compliant Standards	HDCP 2.3, DisplayPort 1.4a
Width	4.96 cm
Depth	22.72 cm
Height	12.324 cm

Technical data provided by third party. We assume no liability for errors within these data.
