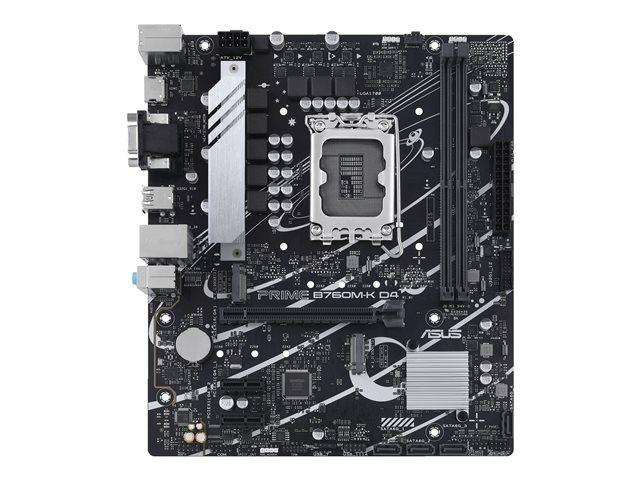

Дънна платка ASUS PRIME B760M-K D4 LGA1700 microATX

Продуктов код: 18914

Запитване за Дънна платка ASUS PRIME B760M-K D4 LGA1700 microATX

Лизингов калкулатор

Продуктът не е наличен и цената му може да не е актуална.

Характеристика	Стойност
Съвместим сокет	1700
Тип памет	DDR4
Чипсет	Intel B760
Арт. номера	90MB1DS0-M1EAY0

ASUS PRIME B760M-K D4 LGA1700 microATX MB 2xDDR4 4xSATA 2xM.2 1xD-Sub 1xHDMI 2.0


Manufacturer	ASUS
Manufacturer Part No	90MB1DS0-M1EAY0

Marketing Description
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-K D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
Product Features
All-around energy efficiency The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows. Precise digital power control The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance. VRM heatsink and thermal pad VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chocks for better cooling performance. ProCool connector Proprietary connectors augment the motherboard's link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors. DDR4 support Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk. Two M.2 slots (up to 64 Gbps) The PRIME B760 motherboard offers a total of two M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives. PCIe 4.0 slot The PRIME B760 motherboard is designed specifically for 13th and 12th Gen Intel CPUs and offer PCIe 4.0 connectivity for the GPUs. Realtek 2.5 Gb Ethernet Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.
General
Product Type	Motherboard - micro ATX
Chipset Type	Intel B760
Processor Socket	LGA1700 Socket
Max Processors Qty	1
Compatible Processors	(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size	64 GB
Technology	DDR4
Bus Clock	2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2600 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.), 5066 MHz (O.C.), 5333 MHz (O.C.)
Supported RAM Integrity Check	Non-ECC
Registered or Buffered	Unbuffered
Features	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type	HD Audio (8-channel)
Compliant Standards	High Definition Audio
LAN
Network Interfaces	2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots	1 x CPU 2 x DIMM 288-pin 1 x PCIe 4.0 x16 2 x PCIe 4.0 x1 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2
RAID Features	Intel Rapid Storage Technology
Interfaces	1 x HDMI 1 x VGA 4 x USB 3.2 Gen 1 2 x USB 2.0 1 x PS/2 keyboard / mouse 1 x LAN (2.5Gigabit Ethernet) 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack
Internal Interfaces	3 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x audio - header 1 x serial - header 1 x SPI - header 1 x SPDIF out - header 1 x speaker - header
Power Connectors	24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type	AMI
BIOS Features	UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up	Wake on LAN (WOL), wake on PME
Hardware Features	ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS Overvoltage Protection, ASUS 5X Protection III, ASUS SafeSlot Core, ASUS ProCool, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, RGB Lighting, Q-LED Core, VRM heatsink design
Miscellaneous
Included Accessories	IO shield, 2 x M.2 anchors
Cables Included	2 x Serial ATA cable
Software Included	ASUS CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR, Armoury Crate, Norton 360 Deluxe (60 days trial), ASUS Fan Xpert
Width	24.4 cm
Depth	21.1 cm

Technical data provided by third party. We assume no liability for errors within these data.
