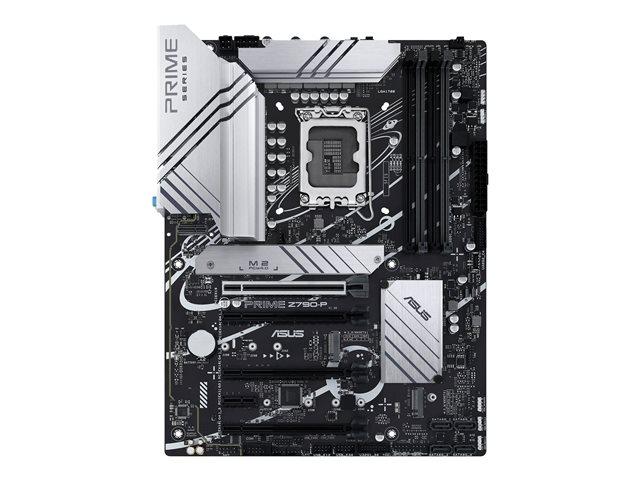

Дънна платка ASUS PRIME Z790-P LGA 1700 4xDDR5 ATX

Продуктов код: 18915

Запитване за Дънна платка ASUS PRIME Z790-P LGA 1700 4xDDR5 ATX

Лизингов калкулатор

Продуктът не е наличен и цената му може да не е актуална.

Характеристика	Стойност
Съвместим сокет	1700
Тип памет	DDR5
Чипсет	Intel Z790
Арт. номера	90MB1CK0-M1EAY0

ASUS PRIME Z790-P LGA 1700 4DDR5 ATX 4xSATA MB 1xHDMI 1xDP 3xM.2


Manufacturer	ASUS
Manufacturer Part No	90MB1CK0-M1EAY0

Marketing Description
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P provides users and PC DIY builders with a range of performance optimizations.
Product Features
Intelligent Control ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans. AI Cooling II AI Cooling II balances the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds. UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. M.2 heatsink The flexible M.2 heatsink with removable captive screws can take care of the M.2 1 or M.2 3 slot, warding off throttling that can occur with M.2 storage during sustained transfers. VRM heatsinks and thermal pads The extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance. Robust power design Stable power is essential to extract every last bit of performance out of Intel processors. The PRIME Z790-P is geared to cater to the demands of these high-core-count CPUs. AEMP II for ultimate DDR5 performance ASUS Enhanced Memory Profile II (AEMP II) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module's ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance. Built through a flexible training method, AEMP II makes it easy to not only tune the memory above baseline settings but also maintain the stability of system operation, whether getting the most out of an entry-level module or priming a high-speed kit for ultimate performance. ASUS OptiMem II Revisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk. Three M.2 slots (up to 64 Gbps) PRIME Z790-P offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives. PCIe 5.0 slot PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and compatibility with previous versions of PCI Express. USB 3.2 Gen 2x2 Type-C A batch of USB ports support high-end rigs loaded with peripherals, including the rear USB Type-C connectors with ultrafast USB 3.2 Gen 2x2 for transmission speeds of up to 20 Gbps. Thunderbolt 4 (USB4 compliant) PRIME Z790-P motherboard features USB4 support via a Thunderbolt (USB4) header. With an ASUS add-on card, PRIME motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge device. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution. Realtek 2.5 Gb Ethernet Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.
General
Product Type	Motherboard - ATX
Chipset Type	Intel Z790
Processor Socket	LGA1700 Socket
Max Processors Qty	1
Compatible Processors	(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size	128 GB
Technology	DDR5
Bus Clock	5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz
Supported RAM Integrity Check	Non-ECC, on-die ECC
Registered or Buffered	Unbuffered
Features	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type	HD Audio (8-channel)
Compliant Standards	High Definition Audio
LAN
Network Interfaces	2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots	1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 3 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 3.0 x1 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) M.2 socket (Key E)
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
RAID Features	Intel Rapid Storage Technology
Interfaces	1 x HDMI 1 x DisplayPort 1 x M.2 Key E 1 x USB-C 3.2 Gen2x2 1 x USB 3.2 Gen 2 2 x USB 3.2 Gen 1 4 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x PS/2 keyboard / mouse 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack
Internal Interfaces	4 x USB 2.0 - header 4 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2 - header 1 x serial - header 1 x SPI - header 1 x SPDIF out - header 1 x audio - header 1 x Thunderbolt - header
Features
BIOS Type	AMI
BIOS Features	UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up	Wake on LAN (WOL), wake on PME
Hardware Features	ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, overvoltage protection, ASUS 5X Protection III, M.2 heatsink, ASUS ProCool, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, ASUS SafeSlot Core+, Q-LED Core, VRM heatsink design, 14+1 Phase Power Design
Miscellaneous
Included Accessories	IO shield, 2 x M.2 rubber package, 2 x M.2 screw package
Cables Included	2 x Serial ATA cable
Software Included	ASUS TurboV EVO Utility, ASUS CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR, Armoury Crate, ASUS Fan Xpert 4, Norton 360 Deluxe (60 days trial)
Width	30.5 cm
Depth	23.4 cm

Technical data provided by third party. We assume no liability for errors within these data.
