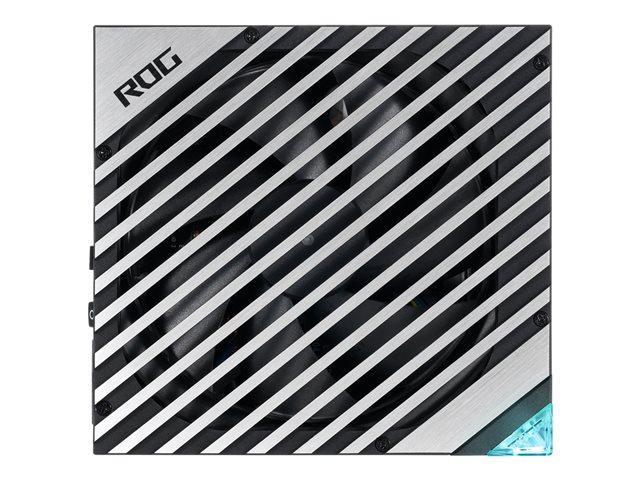

ASUS ROG-THOR-850P2-GAMING PSU

Продуктов код: 18951

Запитване за ASUS ROG-THOR-850P2-GAMING PSU

Лизингов калкулатор

Продуктът не е наличен и цената му може да не е актуална.

Характеристика	Стойност
Мощност	850 W
Форм фактор	ATX
Входно напрежение	100 - 240 V
Арт. номера	90YE00L2-B0NA00

ASUS ROG-THOR-850P2-GAMING PSU


Manufacturer	ASUS
Manufacturer Part No	90YE00L2-B0NA00

Marketing Description
Back with a vengeance, the second iteration of the ROG Thor 1000 W Platinum wields cooling and component upgrades that make it the quietest PSU in its class. And to compliment the latest high-end ROG motherboards and bring additional flair to beastly rigs, ASUS has added a mirrored side panel that neatly frames the OLED display.
Product Features
ROG heatsinks ROG heatsinks have 2x more volume than traditional designs, facilitating lower temperatures, longer component lifespan, and extended 0 dB operation. Axial-tech fan design A 135 mm Axial-tech fan with PWM control delivers lower noise and keeps thermals in check. Dual ball fan bearings The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design. 0 dB technology To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 50% or below. Lambda A++ Certification Thor II cooling upgrades result in a coveted Lambda A++ noise rating, confirming the latest iteration wields menacing power in absolute stealth. 80 Plus Platinum Certification The ROG Thor 1000 W Platinum II utilizes low-ESR Japanese capacitors to ensure efficient operation. These upgrades enable an 80 PLUS Platinum certification, which guarantees 89% efficiency at 100% load and 92% efficiency at 50% load. The increased efficiency results in less heat, reduces fan noise, and increases reliability. OLED power display The built-in OLED panel makes it easy to tune your system for best performance and efficiency. Aura Sync Customize the Aura ROG logo and/or add RGB lighting strips to accent your showcase build. Sleeved cables A range of sleeved cables are bundled with Thor II, and ASUS also provides a 20% CableMod discount. PCIe Gen 5.0 ready Each ROG Thor 1000 W Platinum II PSU is bundled with a 16-pin PCIe cable that can pipe up to 600 W of power to PCIe Gen 5.0 graphics cards. Get ready for the future of power delivery.
General
Device Type	Power supply - internal
Specification Compliance	ATX12V
PSU Form Factor	ATX
Power Device
Input Voltage	AC 100-240 V
Power Output Connectors Details	1 x power 24 pin ATX with detachable 4 pin section 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section 1 x 16 pin PCI Express power 7 x 8 pin PCI Express power with detachable 2 pin section 10 x 15 pin Serial ATA power 6 x 4 PIN internal power
Output Voltage	+3.3, +5, ±12 V
Power Capacity	850 Watt
Output Current	+3.3V - 20 A +5V - 20 A +12V - 71 A -12V - 0.3 A +5VSB - 3 A
Efficiency	92%
Modular Cable Management	Yes
80 PLUS Certification	80 PLUS Platinum
Miscellaneous
Included Accessories	Screws, 10 cable ties, ROG sticker, 6 x ROG cable ties, cable combs
Cables Included	AC input cable - external Power 24 pin ATX with detachable 4 pin section modular cable 61 cm 2 x power 8 pin +12V with detachable 4 pin section modular cable 65 cm 16-pin 12VHPWR power cable 67.5 cm 3 x 8 pin PCI Express power with detachable 2 pin section modular cable 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable 3 x Serial ATA cable ARGB sync cable 2 x 4 pin internal power cable
Cooling System	135 mm fan
Features	Sleeved cables, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, thermal protection, OLED display, fully modular, ASUS Aura Sync, ROG heatsink, 0db Technology, Lambda A++ Certification
Compliant Standards	RoHS
Manufacturer Warranty
Service & Support	Limited warranty - 10 years Limited warranty - OLED panel - 3 years Limited warranty - RGB LEDs - 3 years
Dimensions & Weight
Width	15 cm
Depth	16 cm
Height	8.6 cm
Weight	1.865 kg

Technical data provided by third party. We assume no liability for errors within these data.
