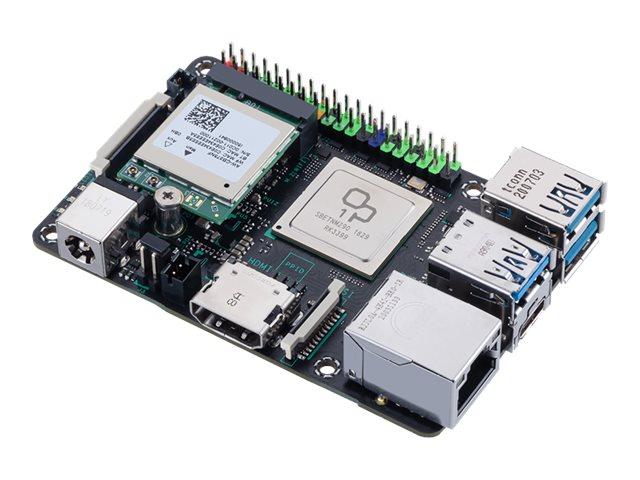

ASUS TINKER BOARD 2/2G

Продуктов код: 18933
Запитване за ASUS TINKER BOARD 2/2G
Лизингов калкулатор
Характеристика Стойност
Арт. номера
90ME01N0-M0EAY0


ASUS TINKER BOARD 2/2G

Manufacturer ASUS
Manufacturer Part No 90ME01N0-M0EAY0

General
Product Type Single-board computer
Category Artificial intelligence
Features Realtek RTL8211F-CG
Parameters Short circuit protection, OpenGL ES 3.0, RTC battery header, Arm big.LITTLE technology, OpenGL ES 3.1, OpenVG 1.1, OpenCL, dual display support, 4K UHD resolution, DisplayPort Alt Mode, overcurrent protection, ESD protection (8kV of contact discharge), overvoltage protection, firmware over-the-air (FOTA) support
Supported Software Debian Linux, Android, Android Neural Networks API 1.2
Processor
Type Rockchip
Processor Number RK3399
Number of Cores 6-core
RAM
Technology LPDDR4 SDRAM
Installed Size 2 GB
Flash Memory
Supported Flash Memory Cards microSD
Graphics System
Graphics Accelerator Mali T860 MP4
Networking
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0
Wireless Protocol 802.11a/b/g/n/ac, Bluetooth 5.0
Wired Protocol Gigabit Ethernet
Interface Provided
Interface Provided LAN (Gigabit Ethernet) - RJ-45
3 x USB 3.2 Gen 1 - Type A
USB 3.2 Gen 1 OTG - Type C
HDMI - Type A
SPDIF out
MIPI CSI-2 (2 lane) - 15 pins
GPIO - 28 pins
2 x SPI
2 x I2C
2 x UART
I2C
Debug input
Power Device
Power Source AC power adapter
Miscellaneous
Width 8.5 cm
Depth 5.6 cm
Technical data provided by third party. We assume no liability for errors within these data.
