Начало Компютърни компоненти Дънни платки ASUS ASUS TUF GAMING B760-PLUS WIFI D4 LGA 1700 4DDR4 ATX 4xSATA MB 1xHDMI 2.1 1xDP 1.4 3xM.2

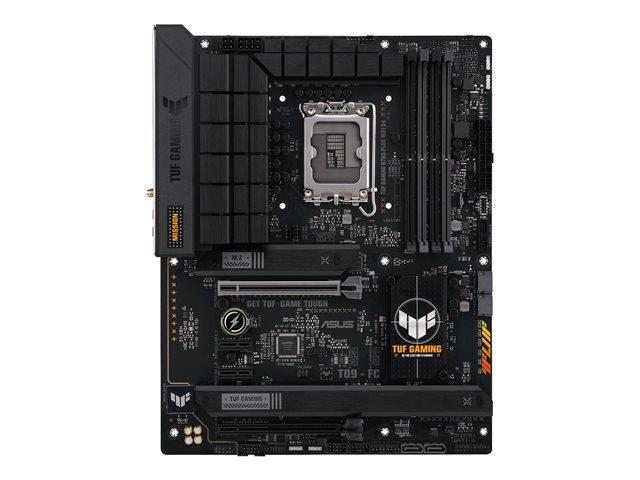

ASUS TUF GAMING B760-PLUS WIFI D4 LGA 1700 4DDR4 ATX 4xSATA MB 1xHDMI 2.1 1xDP 1.4 3xM.2

Продуктов код: 18931

Запитване за ASUS TUF GAMING B760-PLUS WIFI D4 LGA 1700 4DDR4 ATX 4xSATA MB 1xHDMI 2.1 1xDP 1.4 3xM.2

Лизингов калкулатор

Характеристика	Стойност
Съвместим сокет	1700
Тип памет	DDR4
Чипсет	Intel В760
Арт. номера	90MB1DF0-M1EAY0


Manufacturer	ASUS
Manufacturer Part No	90MB1DF0-M1EAY0

Marketing Description
TUF GAMING B760-PLUS WIFI D4 takes all the essential elements of the Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
Product Features
All-around energy efficiency The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows. UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans. DrMOS power stages 14 + 1 power stages combine high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors. Six-layer PCB design The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom. 8 + 4 pin ProCool power connectors Compared to most power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure. TUF chokes Certified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability. TUF capacitors The TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5x-longer lifespan than standard motherboard capacitors. Digi+ VRM The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times. DRAM overclocking performance Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk. Cooler by design The TUF GAMING B760-PLUS WIFI D4 is armed with an enlarged VRM heatsink, while three M.2 slots and the PCH feature heatsinks that provide the perfect balance of mass and surface area for heat dissipation. Connectivity The TUF GAMING B760-PLUS WIFI D4 reaches new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes two Type-C connections, and Thunderbolt 4 expands compatibility and bandwidth even further. Build with confidence TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With many partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger. SafeSlot Core+ and SafeDIMM SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Because PCIe 5.0 is two times faster than PCIe 4.0, ASUS enhanced SMT manufacturing processes for the faster SafeSlot - all to ensure users get the highest-possible data speeds. In addition, the ASUS SafeDIMM sheath is added to support and protect memory modules on select ASUS motherboards, empowering you to insert modules with speed, accuracy and confidence. ESD Guards ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge - greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes. TUF LANGuard TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity. Stainless steel back I/O panel TUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that's three times longer than traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing. M.2 Q-Latch The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws. Removable captive screws Specialized M.2 slot screws reduce the risk of dropping or losing a screw somewhere in your case during M.2 heatsink removal. Q-LED The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components - CPU, RAM, graphics card, storage devices - are functioning normally during startup. Intel 2.5 Gb Ethernet On-board 2.5 Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds by up to 2.5x. Using your existing LAN cable, you can take advantage of this networking upgrade to reduce lag, experience smoother high-resolution video streams, and enjoy faster file transfers. Two-way AI noise cancelation This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are muffled so you can hear and be heard with excellent clarity while gaming or during calls. Realtek 7.1 surround sound The unique audio codec designed in close collaboration with Realtek for TUF GAMING B760 motherboard features an unprecedented 98 dB signal-to-noise ratio for the stereo line out, providing pristine audio quality. DTS Audio Processing DTS Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies and music sound better. It also allows you to customize audio settings. Outshine the competition A well-tuned system deserves a matching aesthetic. The TUF GAMING B760 series features edge lighting to enhance its rugged look, and ASUS Aura offers full RGB control with presets for built-in LEDs and third-party strips. It can all sync with an ever-growing portfolio of Aura-compatible hardware. Addressable Gen 2 RGB header Three addressable Gen 2 RGB headers will support up to 500 LEDs on Gen 2 RGB devices, empowering Aura Sync to automatically tailor lighting effects across your whole system. The headers also offer full backward compatibility with existing Aura Sync gear.
General
Product Type	Motherboard - ATX
Chipset Type	Intel B760
Processor Socket	LGA1700 Socket
Max Processors Qty	1
Compatible Processors	(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size	192 GB
Technology	DDR4
Bus Clock	2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.), 5066 MHz (O.C.), 5333 MHz (O.C.)
Supported RAM Integrity Check	Non-ECC
Registered or Buffered	Unbuffered
Features	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type	HD Audio (8-channel)
Compliant Standards	Digital Theater Systems (DTS), High Definition Audio
LAN
Network Interfaces	2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion / Connectivity
Expansion Slots	1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 3.0 x16 (x4 mode (x2 mode if PCI Express 3.0 x1 slot is occupied)) 2 x PCIe 3.0 x1 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 3 x M.2
RAID Features	Intel Rapid Storage Technology
Interfaces	1 x DisplayPort 1 x HDMI 1 x USB-C 3.2 Gen2x2 1 x USB 3.2 Gen 2 3 x USB 3.2 Gen 1 1 x USB 2.0 2 x aerial 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x microphone - mini-jack 1 x SPDIF out
Internal Interfaces	1 x USB-C 3.2 Gen 2 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x serial - header 1 x audio - header 1 x Thunderbolt - header
Power Connectors	4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type	AMI
BIOS Features	UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up	Wake on LAN (WOL), wake on PME
Hardware Features	Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, 6 Layer PCB, ProCool Power Connector, Dr.MOS MOSFET, TUF LANGuard, overvoltage protection, ASUS SafeDIMM, M.2 heatsink, ASUS ProCool, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS TUF Protection, ASUS Aura Sync, ASUS OptiMem II, 12+1 Phase Power Design, ASUS SafeSlot Core+, M.2 Q-Latch, Windows 11 compatible, CPU Socket lever protector, VRM heatsink design
Miscellaneous
Included Accessories	ASUS Wi-Fi moving aerial, 2 x M.2 rubber package, M.2 screw package, TUF certification card, TUF GAMING sticker
Cables Included	2 x Serial ATA cable
Software Included	ASUS AI Suite III, PC Cleaner, WinRAR, ASUS TUF GAMING CPU-Z, ASUS AURA Creator, MyAsus, Armoury Crate, ASUS Fan Xpert 4, Norton 360 for Gamers, DTS Audio Processing
Width	30.5 cm
Depth	24.4 cm

Technical data provided by third party. We assume no liability for errors within these data.
